QR - Type |
|
|
|
|
¡@¡@¡@¡@¡@¡@¡@¡@¡@< QR-Type top > |

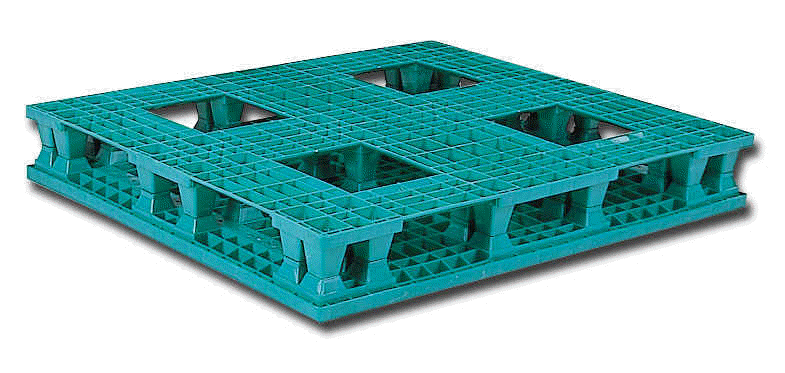

¡@¡@ < QR-Type bottom > |
|
¡± Feature: Single face, nested deckboard, non-reversible, four-way entry, heavy load capacity. ¡@ |
QR-Type Specification |
|||
Item |
Size
(inch) |
Rack loading (max_kg) |
Dynamic loading (max_kg) |
| QR-4440C |
44 X 40 X 6.2 |
800 | 1000 |
| QR-4440D |
44 X 40 X 6.8 |
1000 | 1500 |
| QR-4442C |
44 X 42 X 6.2 |
800 | 1000 |
| QR-4442D |
44 X 42 X 6.8 |
1000 | 1500 |
| QR-4444C |
44 X 44 X 6.2 |
800 | 1000 |
| QR-4444D |
44 X 44 X 6.8 |
1000 | 1500 |
| QR-4640C |
46 X 40 X 6.2 |
800 | 1000 |
| QR-4640D |
46 X 40 X 6.8 |
1000 | 1500 |
| QR-4642C |
46 X 42 X 6.2 |
800 | 1000 |
| QR-4642D |
46 X 42 X 6.8 |
1000 | 1500 |
| QR-4644C |
46 X 44 X 6.2 |
800 | 1000 |
| QR-4644D |
46 X 44 X 6.8 |
1000 | 1500 |
| QR-4646C |
46 X 46 X 6.2 |
800 | 1000 |
| QR-4646D |
46 X 46 X 6.8 |
1000 | 1500 |
| QR-4840F |
48 X 40 X 6.5 |
1000 | 1300 |
| QR-4840C |
48 X 40 X 6.2 |
800 | 1000 |
| QR-4840D |
48 X 40 X 6.8 |
1000 | 1500 |
| QR-4842C |
48 X 42 X 6.2 |
800 | 1000 |
| QR-4842D |
48 X 42 X 6.8 |
1000 | 1500 |
| QR-4844C |
48 X 44 X 6.2 |
800 | 1000 |
| QR-4844D |
48 X 44 X 6.8 |
1000 | 1500 |
| QR-4846C |
48 X 46 X 6.2 |
800 | 1000 |
| QR-4846D |
48 X 46 X 6.8 |
1000 | 1500 |
| QR-4848C |
48 X 48 X 6.2 |
800 | 1000 |
| QR-4848D |
48 X 48 X 6.8 |
1000 | 1500 |
